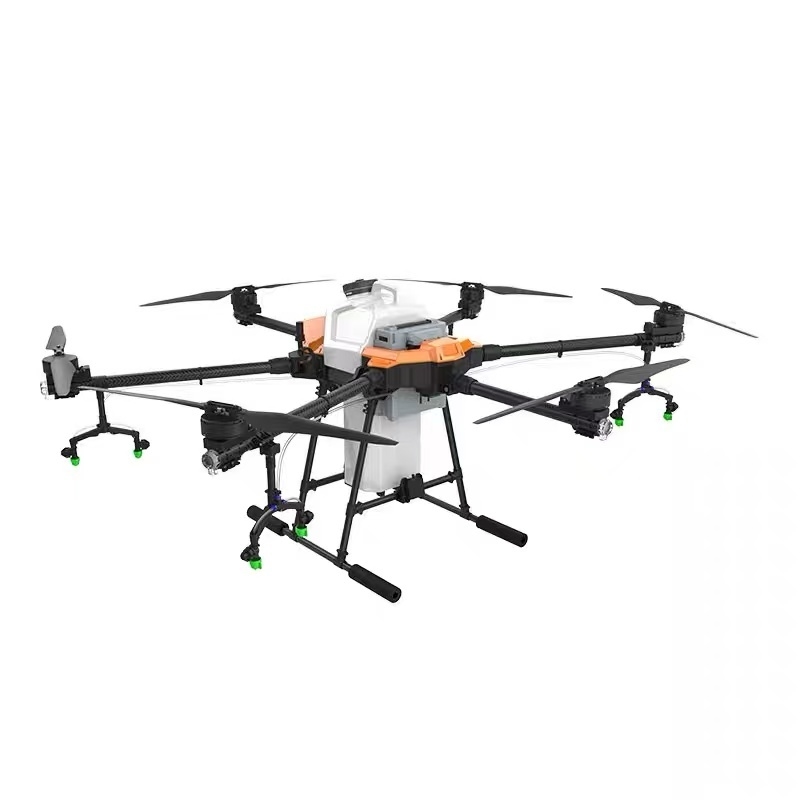

Drone Crop Spraying Payload 30L/Min Pump+8 High Precision Sprayer Agricultural UAV
Product Description
The A630 agricultural sprayer drone is a powerful advancement in agricultural machinery, designed to enhance efficiency and durability. With a full-load takeoff weight of 59.05 kg (slow charge battery) or 59.25 kg (fast charge battery), this precision agriculture UAV stands out for its reliability in tough farming environments. Its high-capacity system allows it to carry 30 liters of material for spraying, and it can be equipped with an interchangeable granule spreader system, making it an efficient all-rounder for agricultural operations. The frame combines aerospace-grade aluminum and durable injection-molded plastic, balancing structural strength with streamlined design to ensure stability during various agricultural tasks.
The space-saving foldable design enhances portability—when folded, it measures 1192*623*885mm (less than half the fully deployed size), making it easy to transport between sites, an ideal feature for large-scale farming operations. All core components are shielded with IP65 waterproof and dustproof protection, and waterproof connectors ensure reliability in harsh weather conditions. The integrated flight control module, paired with advanced IMU sensors and GPS, supports stable autonomous operation, enhancing usability even for complex field tasks.
Equipped with a high-performance brushless motor pump rated at a flow rate of 8 L/min, the drone delivers accurate spraying of fertilizers and pesticides, making it effective for precise applications like fruit tree and grain crop cultivation. The 30-liter tank reduces frequent refills, while the spraying system’s 8 high-pressure nozzles (positioned under the propellers) ensure water droplets penetrate crops for consistent coverage. With a 6-meter spray width, it covers more area with fewer flights, optimizing work efficiency.
Measuring 2018 mm in wheelbase, the drone is versatile for various field sizes. It operates on a branded Tattu 3.5 battery (14S1P 30000 mAh / 53.2V), featuring quick attach-detach Molex connectors for easy replacement—no Velcro needed. The battery charges in about 30 minutes (with TA3200 charger), supporting long-term, continuous operations. It offers a recommended flight speed of 5 m/s and a maximum speed of 10 m/s, with wind resistance up to 8 m/s, ensuring consistent performance even in challenging conditions.
Product Parameters
| Model Number |
ZAi-A630 |
Dynamic System |
maximum power of 42.7 HP |
| Unfolded Size |
1192*623*885mm |
Spraying System |
8 L/min pump+8/min nozzle |
| Wheelbase |
2018mm |
Hovering Time |
With a 30 L payload, hovering
time is 8.19 minutes (fast charge battery)
|
| Operation Power |
14S1P 30000mAh / 53.2V |
| Weight |
59.05kg(slow charge battery) |
Battery Cycle Life |
650 times |
Product Advantages
- Durable Composite Frame Structure: The A630 features a high-strength chassis composed of aerospace-grade aluminum frames and injection-molded plastic body, combining robust load-bearing capacity (supporting over 30 kg payload) with streamlined reliability, ensuring stability in tough agricultural environments
- Waterproof and Dustproof Protection: With IP65 rating, all core components are shielded to resist water and dust—even allowing the entire aircraft to be washed with a water spray after operation. This enhances durability and reliability in harsh farming conditions
- Integrated and Intelligent Flight Control System: Equipped with precise IMU sensors, GPS, and advanced navigation algorithms, the flight control module supports autonomous operation, following preset mission waypoints. It works seamlessly with obstacle-avoidance radar sensors for safe, stable performance across all terrains
- High-Performance Spraying System: Features a brushless motor pump with 8 L/min flow rate and a high-precision flow meter, ensuring accurate spraying. The 8 high-pressure nozzles under the propellers enable thorough crop penetration, making it ideal for both fruit trees and grain crops
Product Application
Farmers And Ranchers: They are the primary users of drones for crop monitoring, field mapping, and precision agriculture.
users. Drones help them assess crop health, optimize irrigation,and manage pest control.
Agribusiness: Large agribusinesses use drones for a broader range of operations, including large-scale crop monitoring, soil health analysis , and yield prediction, analysis & yield forecasting.
Agri-Tech Companies: Companies developing agricultural technologies often use drones to test and improve their products, or to provide integrated solutions that combine drones with other technologies such as sensors and artificial intelligence.
Government And Research Organizations: These organizations use drones for research purposes, such as studying crop diseases, soil conditions, and environmental impacts. They may also use drones to monitor and manage agricultural policies and subsidies.
Agricultural Consultants And Service Providers: Professionals who offer specialized services to farmers such as precision farming advice or aerial imaging services often use drones as part of their toolkit.
Educational institutions: Universities and agricultural colleges use drones for teaching, research projects, and developing new agricultural technologies.
Environmental And Conservation Organizations: These organizations use drones to monitor land use, assess environmental impacts, and manage the impacts of agriculture.
